> VS-VSKD320-16PBF

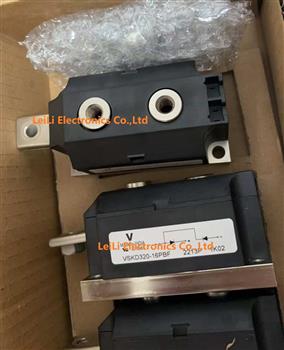

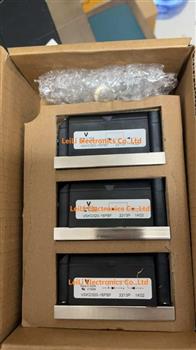

VS-VSKD320-16PBF Product Pictures
The picture is for reference only, the product is subject to the actual product
  • VS-VSKD320-16PBF Product Pictures
  • VS-VSKD320-16PBF Product Pictures
  • VS-VSKD320-16PBF Product Pictures
  • VS-VSKD320-16PBF Product Pictures

VS-VSKD320-16PBF This Vishay VS-VSKD320-16PBF is a high-voltage dual power diode module (common cathode) in MAGN-A-PAK package, 1600V, 320A. 100% fully tested, working condition. Designed for battery chargers, welders, motor drives, industrial power supplies, and high-power rectification requiring high current handling and high voltage capability. Reliable for commercial high-power industrial applications.

  • Product Name：Vishay VS-VSKD320-16PBF High Voltage Dual Power Diode Module 1600V 320A
  • Brand： Vishay
  • Packing：Box
  • Package：Standard
  • SPQ：
  • Channel:Self-Support
  • MOQ：1
Unit Price： $ 200
Total： $ 200
Order Quantity：
- +
Stock：11
For details, please consult: ben   +86-755-8363-6065   Or Submit Inquiry！

Price Gradient Price

  • 1+ $200
Inquiry Online
*Part Number *Manufacturer *Require Qty Target Price（$） *Contact Name *E-mail or Phone
Message
Submit
  • Technical Parameter
Product Attributes
Type Dual Power Diode (Common Cathode)
VRRM 1600 V
IF(AV) 320 A
IFSM 10.58 kA (surge)
VF 1.28 V (max)
IR 50 mA (max)
Package MAGN-A-PAK (base mount)
Dimensions 115 x 50 x 52 mm
Peak non-repetitive forward current (IFSM) 11000 A
Forward voltage (Vf) at 500 A 1.28 V
Mounting Screw terminal / Panel
Diode type High voltage rectifier
Applications Battery chargers, welders, motor drives
Status Commercialized
Datasheet
VS-VSKD320-16PBF.pdf
  • Commodity Description
High-voltage dual power diode module (common cathode) in MAGN-A-PAK package, 1600V, 320A. Applications: battery chargers, welders, motor drives, industrial power supplies, and high-power rectification requiring high current handling and high voltage capability.
